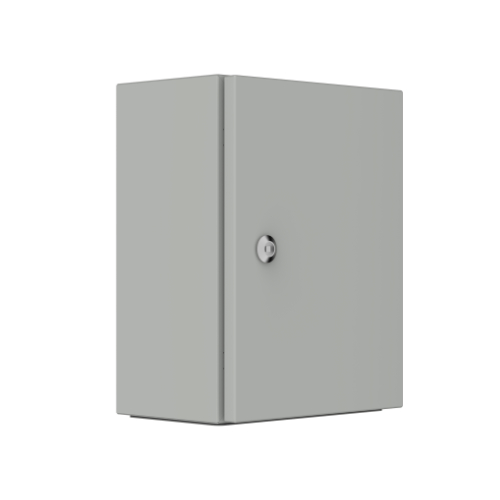

Forte FR – Steel

An IP65, steel enclosure suitable for a variety of indoor, general electrical applications.

Product Information

Applications

Suitable for a variety of indoor, general electrical applications.

For outdoor applications, we recommend the use of the Universal NI for a longer service life and increased robustness.

Features

  • IP65 protection rating – more info on IP ratings

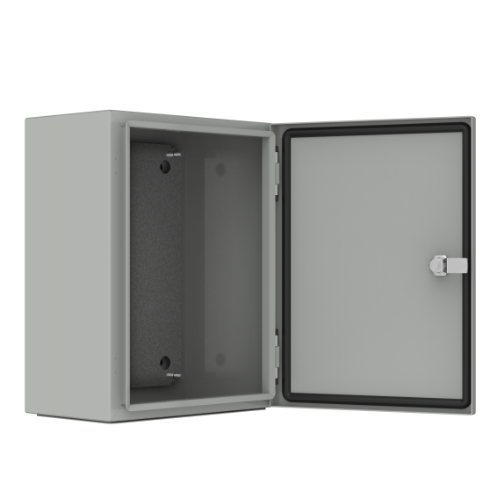

  • 110º door opening for ease of access utilising concealed door hinge.
  • Rear mounting arrangement with wall mounting brackets included
  • Galvanised steel gland plates come standard on enclosures 200mm and above

Construction

  • Powdercoated 1.2 or 1.6mm carbon steel

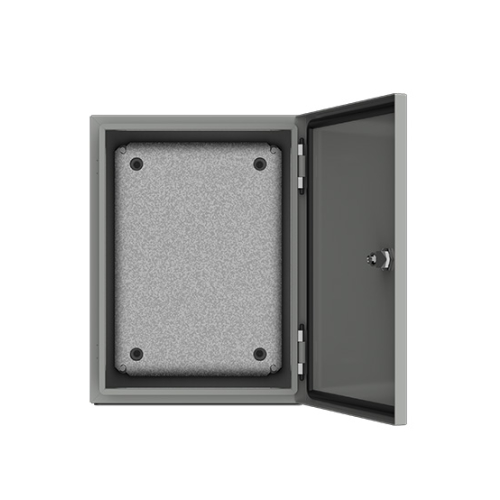

  • Galvanised steel mounting pan

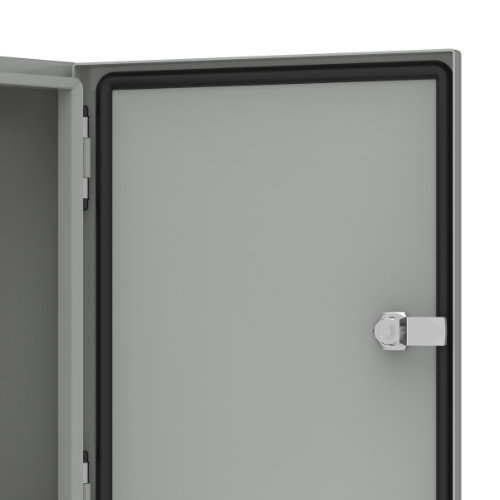

  • Polyurethane Gasket (FIP / Form in place)
  • Powdercoated Light Grey RAL7035

DownloadsAccessoriesEnquiry

Order Guide

Part NumberHeight (mm)Width (mm)Depth (mm)CAD Blocks3D BlocksEnquiry
FR030212300200120Enquiry
FR030215300200150Enquiry
FR030315300300150Enquiry
FR040315400300150Enquiry
FR030415300400150Enquiry
FR030320300300200Enquiry
FR040320400300200Enquiry
FR050320500300200Enquiry
FR060320600300200Enquiry
FR030420300400200Enquiry
FR040420400400200Enquiry
FR050420500400200Enquiry
FR060420600400200Enquiry
FR070420700400200Enquiry
FR050520500500200Enquiry
FR060620600600200Enquiry
FR080620800600200Enquiry
FR040430400400300Enquiry
FR060430600400300Enquiry
FR050530500500300Enquiry
FR060630600600300Enquiry
FR080630800600300Enquiry
FR1006301000600300Enquiry
FR1206301200600300Enquiry
FR1008301000800300Enquiry
FR1208301200800300Enquiry
FR1008401000800400Enquiry
FR1208401200800400Enquiry

* Products marked are on runout clearance. Please contact your local B&R rep for pricing

Accessories

Accessories

Lock Options

Standard

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage

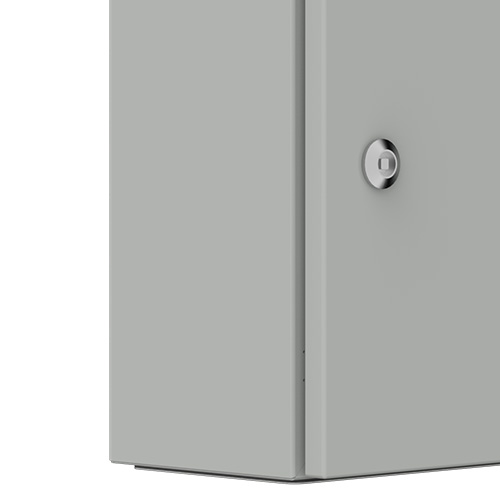

NI020TurnbuckleChromed SteelStandard7mm Square Chromed SteelSKZTurnbuckle Lock - 7mm square, chrome steel

Options

Catalogue No.TypeMaterialCommentsLock Insert TypeKeyImage
NI030Wing Knob - LockableOptionKey Code 92268SK3Lockable Wing Knob - 92268 Key
NI030/CL001Wing Knob - LockableOptionKey Code CL001SK3Lockable Wing Knob - 92268 Key
NI030/L003Wing Knob - LockableOptionKey Code L003SK3Lockable Wing Knob - 92268 Key
NI111Wing Knob - Non-lockableOptionNon-lockable Wing Knob
NI040T Handle - LockableChromed SteelOptionKey Code 92268SK3T Handle Lockable - Chromed Steel 92268 Lock
NI050L Handle - LockableChromed SteelOptionKey Code 92268SK3L Handle Lockable - Chrome Steel Key 92268
NI052L Handle - PadlockableChromed SteelOptionPadlockL Handle - Padlockable, Chrome Steel
NI020/DCDust CapPlasticOptionDust Cap for NI locks
Inserts for Turnbuckle Locks - Optional
Catalogue No.ProductMaterialLock Insert TypeKey
LKINS3PInsertSteel3mm Double Bit PinSKZ
LKINS8SInsertSteel8mm SquareSK8
LKINS8TInsertSteel8mm TriangleSKZ
